Equipment by process stage

This equipment index is organised by the six main stages of mineral processing: comminution, conditioning, separation, dewatering, material handling, and control. Within each stage, you will find specific machinery such as crushers, mills, flotation tanks, thickeners, and automation systems. Select a stage to browse applicable models and begin building your flowsheet. For engineering support, consult Xinhai Mining's technical team.

Comminution

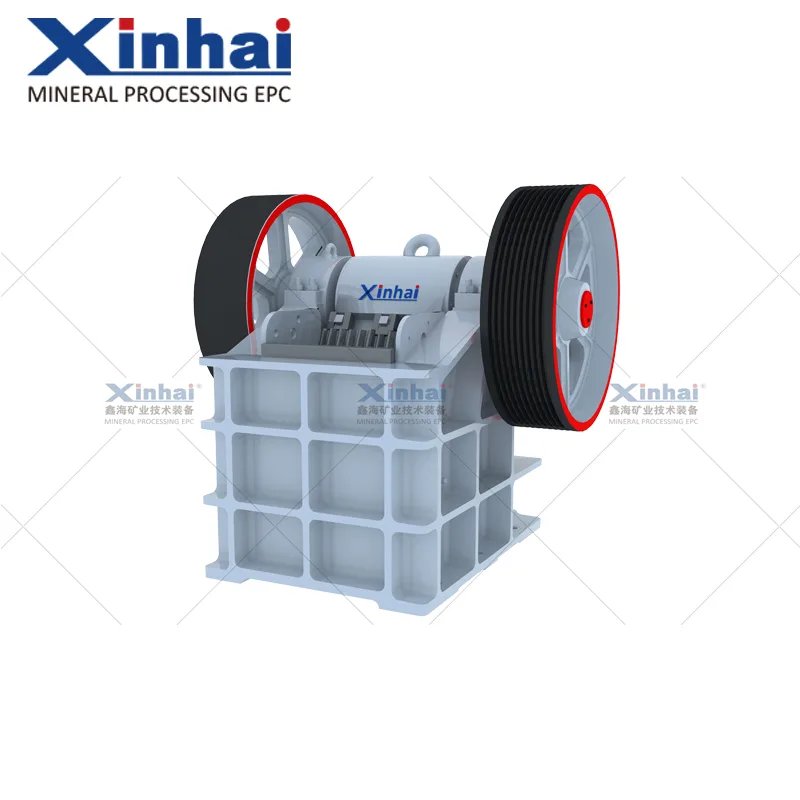

Crushing Equipment8 equipment types

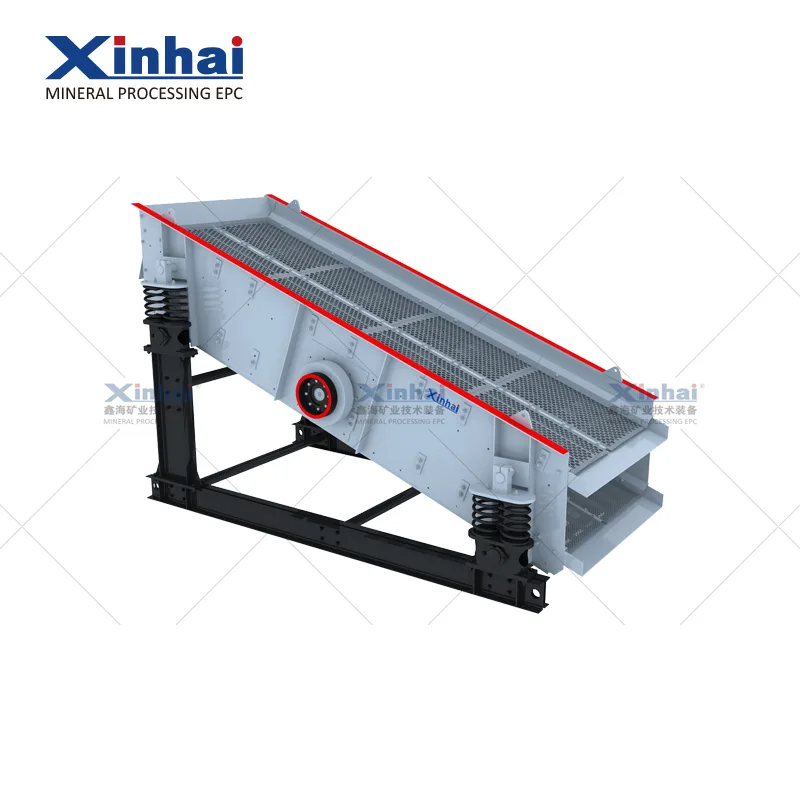

Screening Equipment6 equipment types

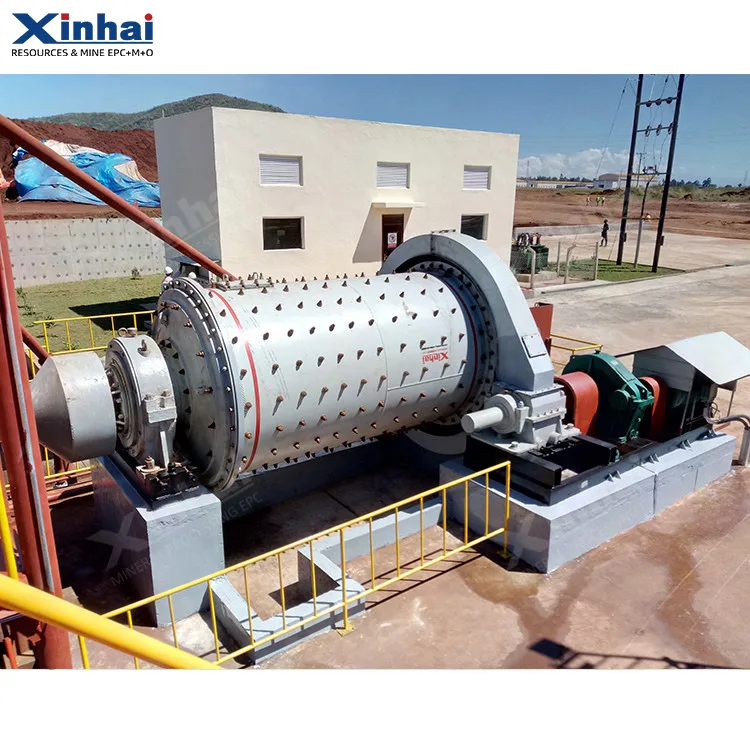

Grinding Equipment7 equipment types

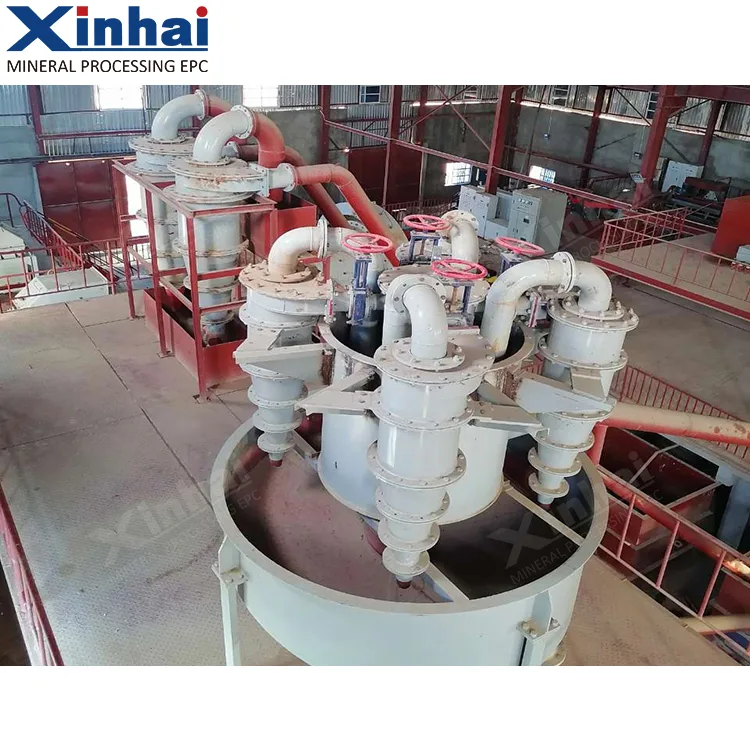

Classification Equipment6 equipment types

Conditioning

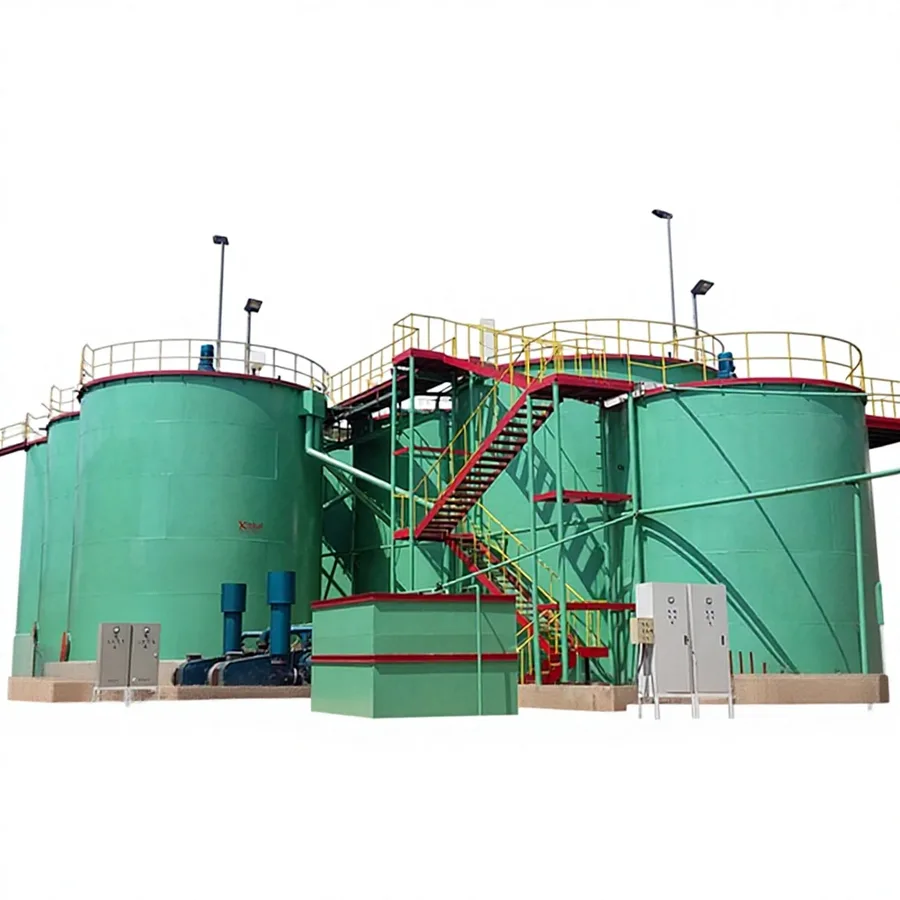

Agitation Equipment7 equipment types

Separation

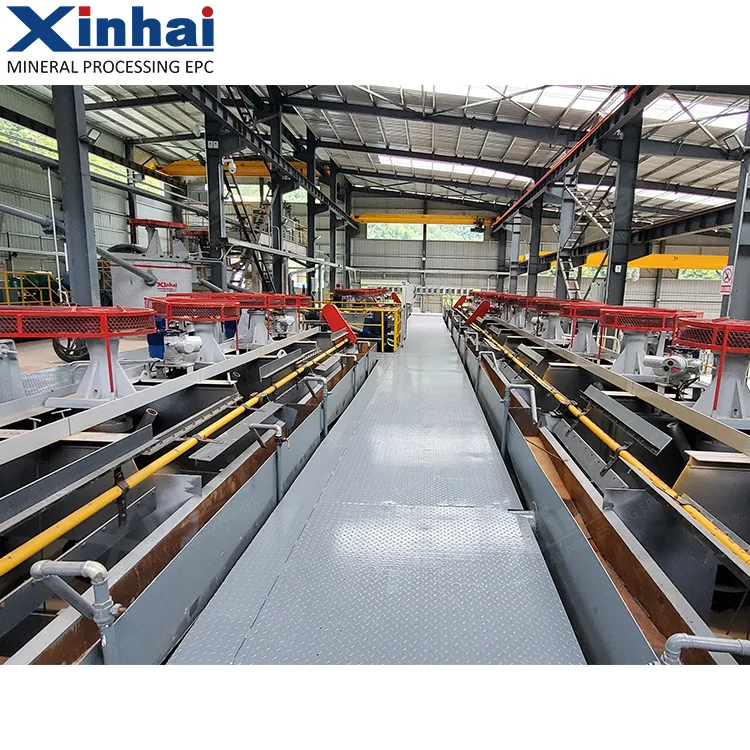

Flotation Equipment8 equipment types

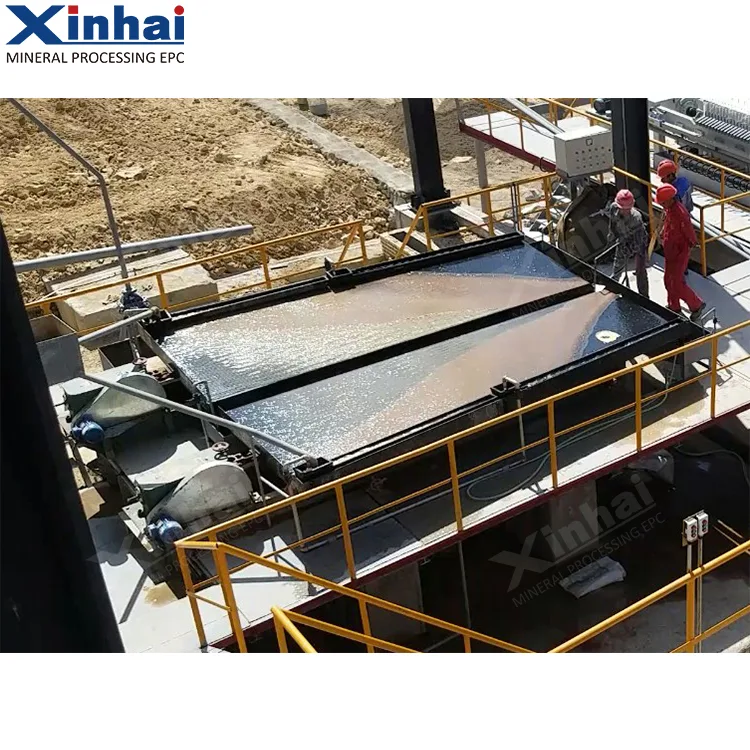

Gravity Separation Equipment8 equipment types

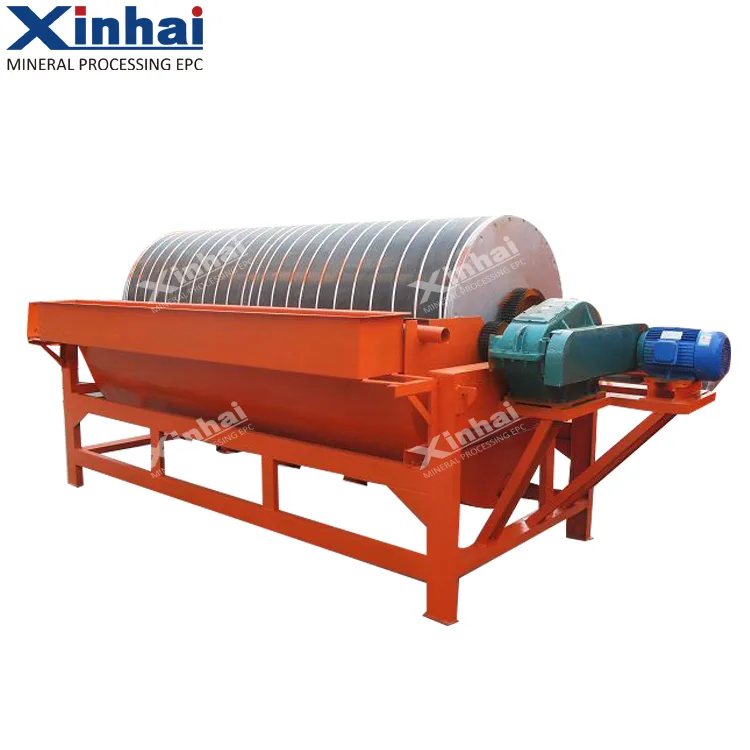

Magnetic Separation Equipment11 equipment types

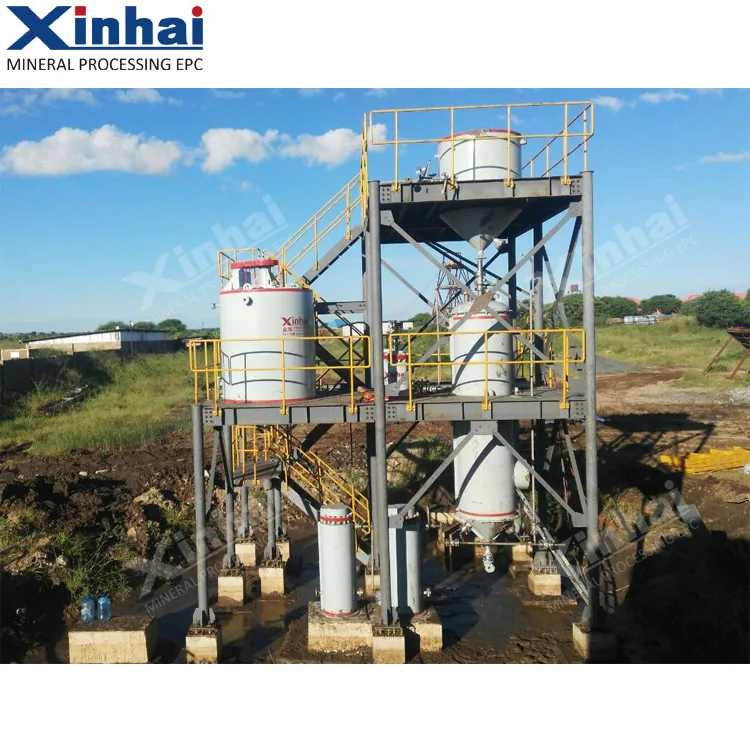

Gold Extraction Equipment10 equipment types

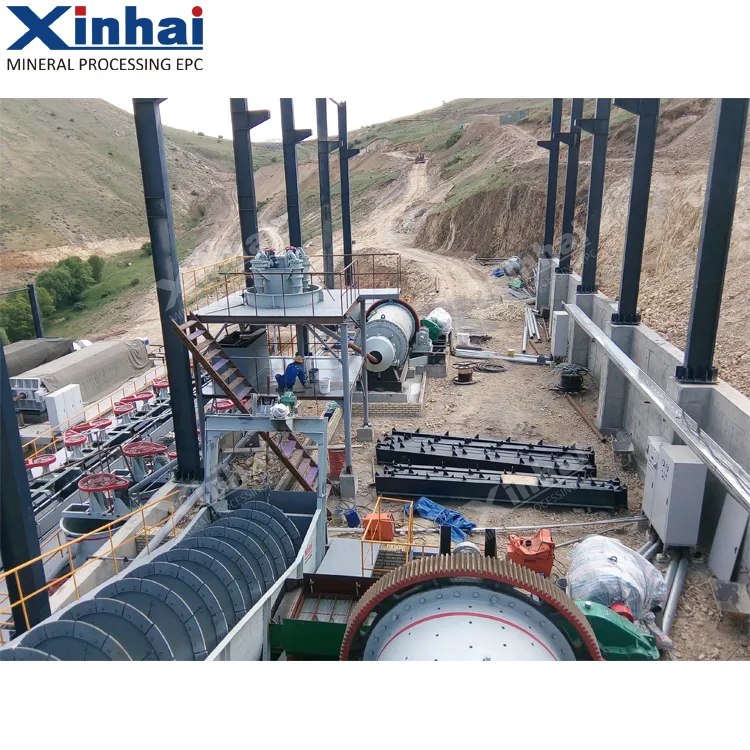

Non-Metallic Mineral Processing Equipment5 equipment types

Dewatering

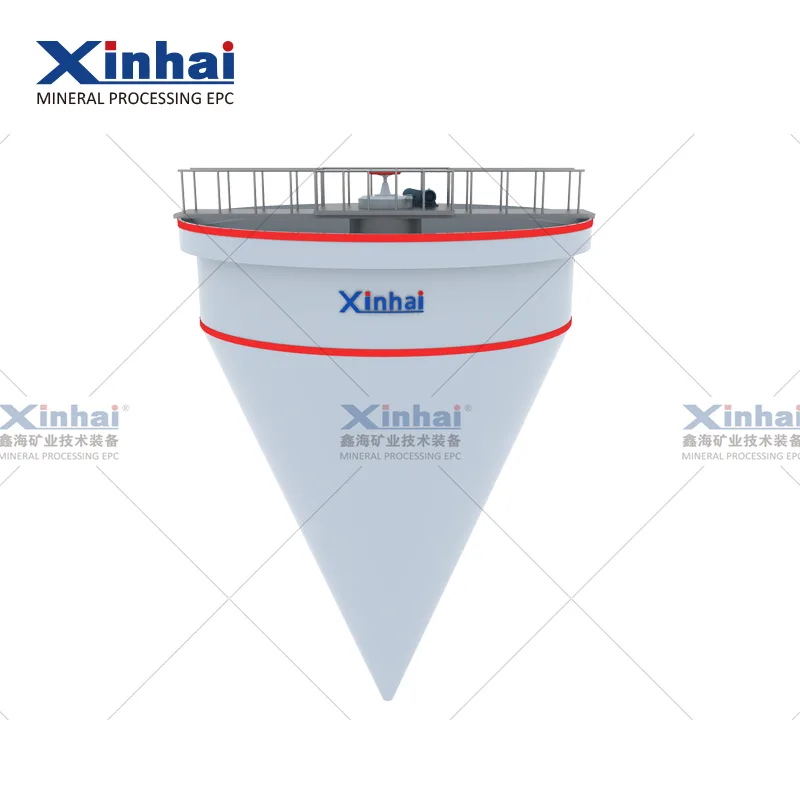

Thickening Equipment6 equipment types

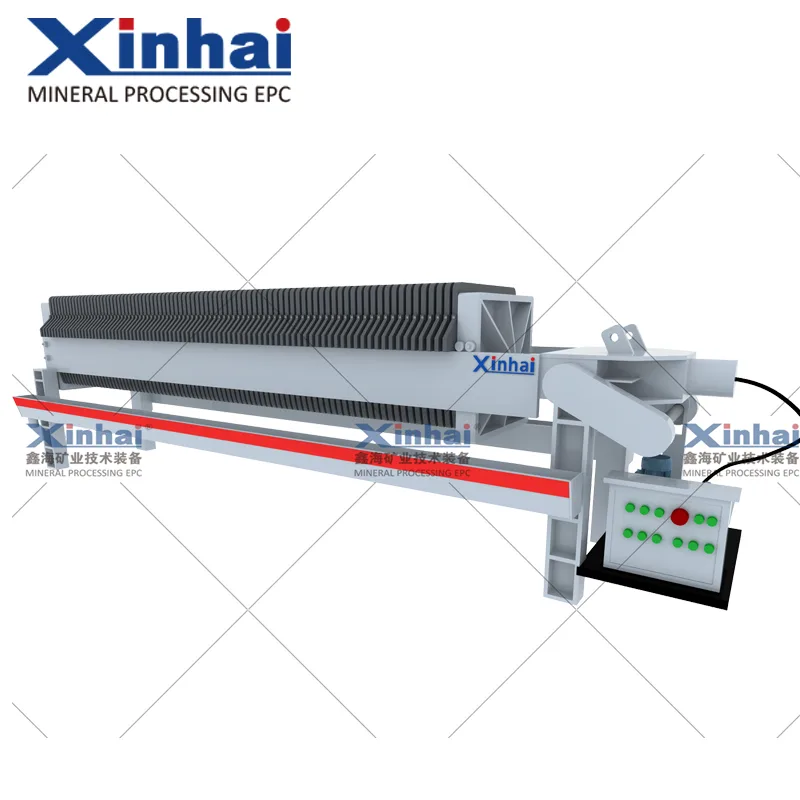

Filtration Equipment8 equipment types

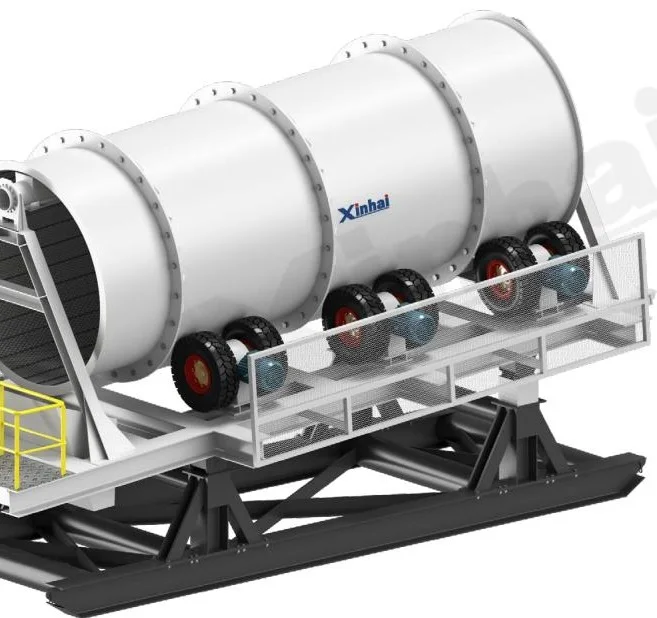

Drying and Pelletizing Equipment3 equipment types

Material Handling

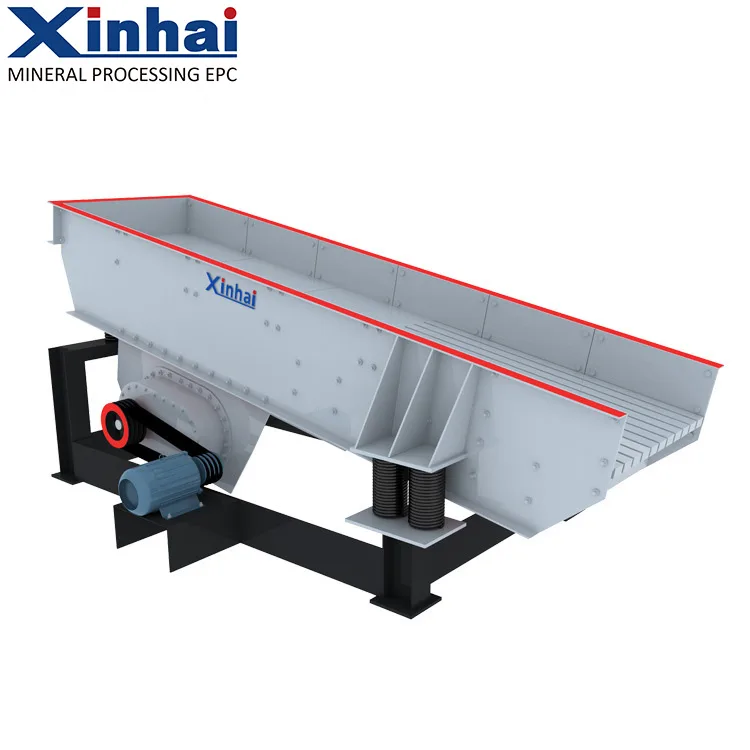

Feeding Equipment9 equipment types

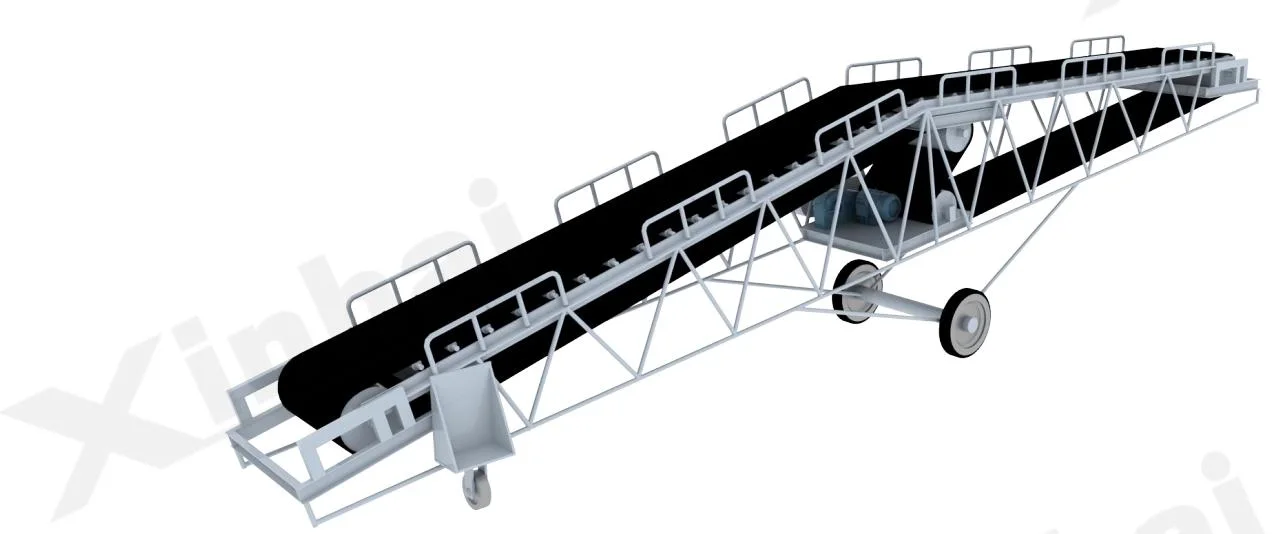

Conveying Equipment5 equipment types

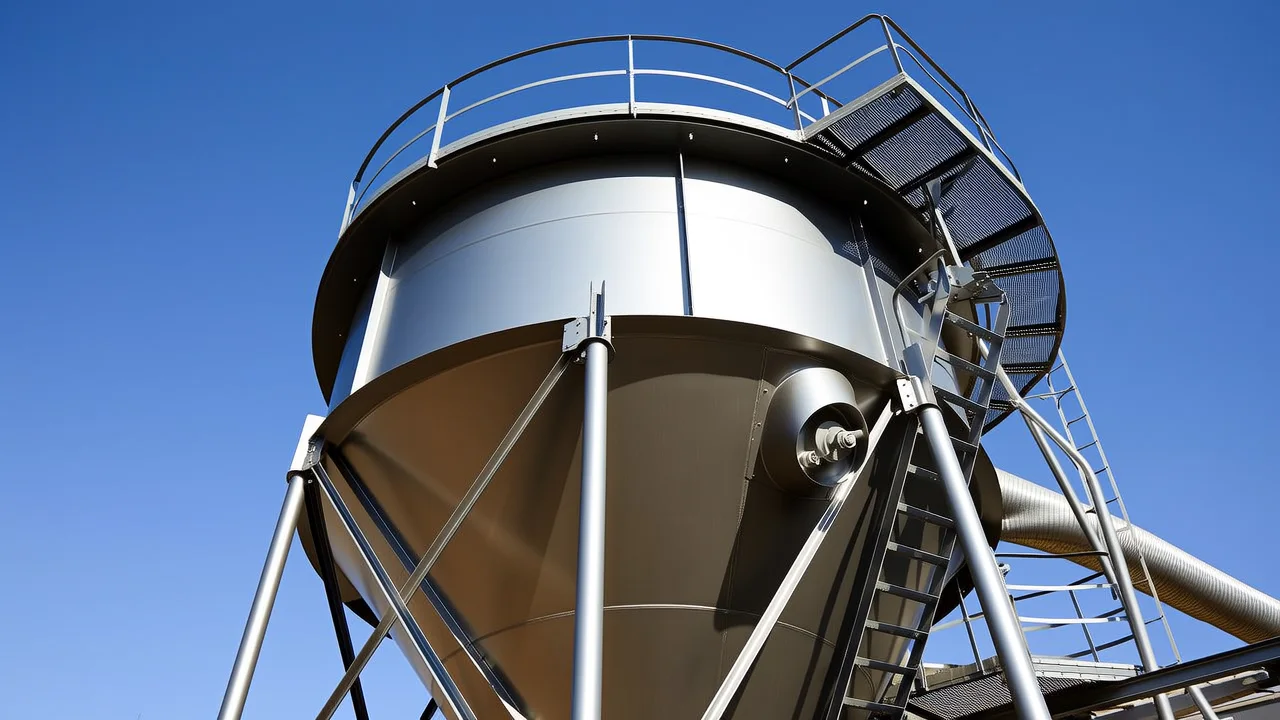

Steel storage silo with conical discharge hopper and access stairway

Steel Silos4 equipment types

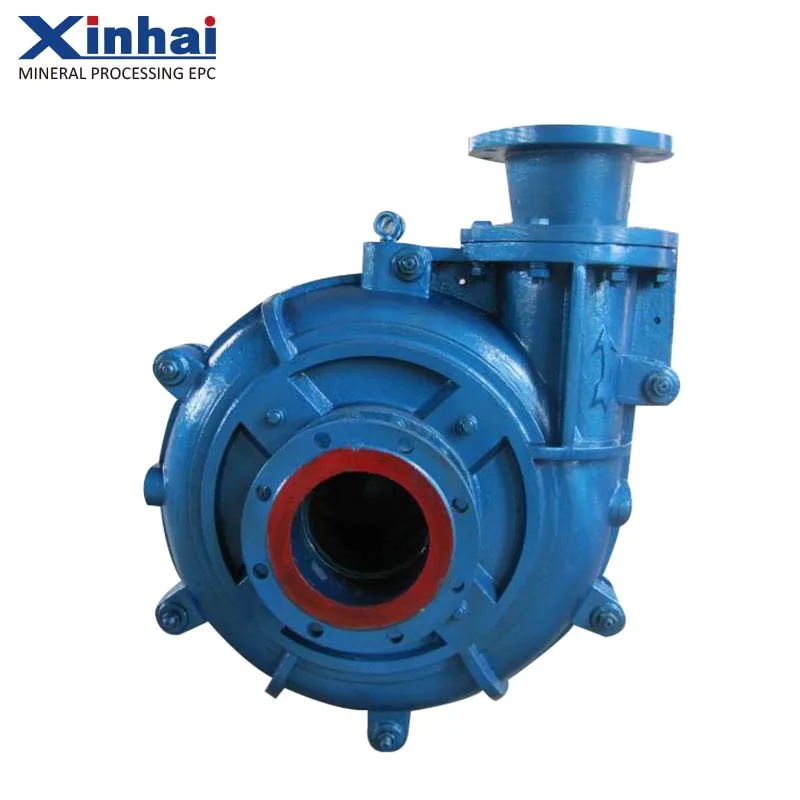

Slurry Pumps and Valves11 equipment types

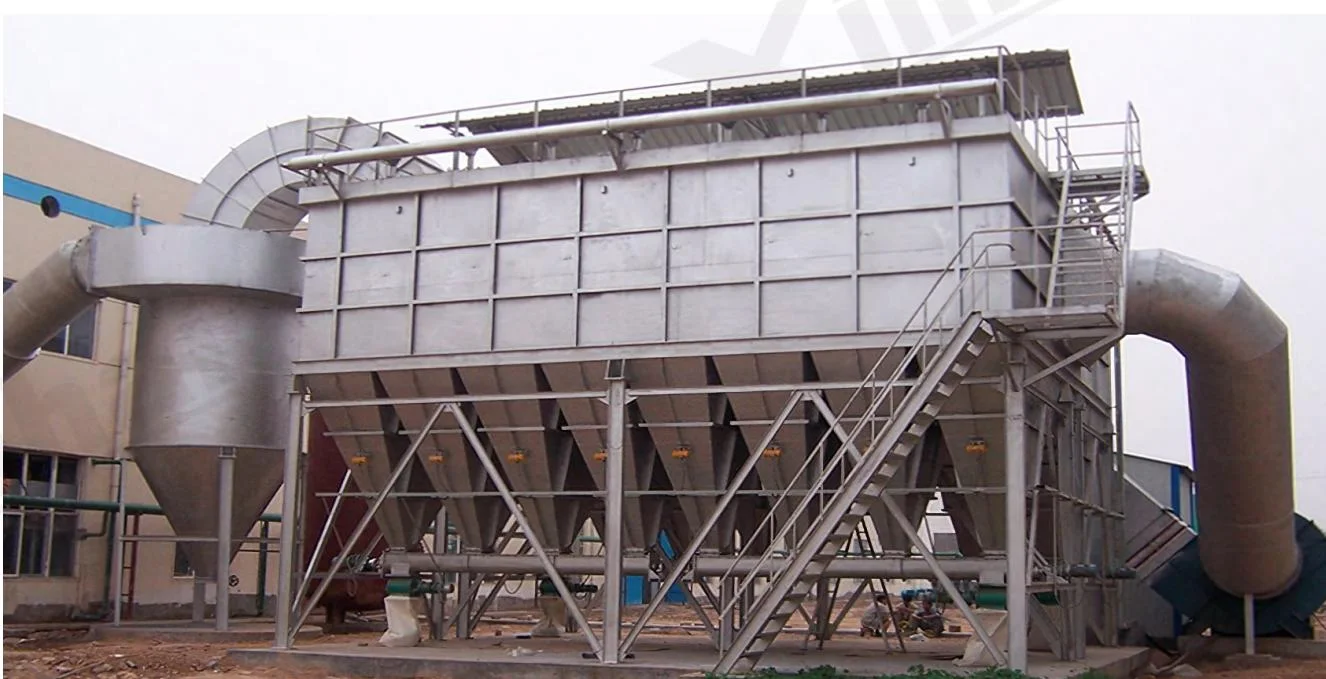

Dust Collection Equipment6 equipment types

Control

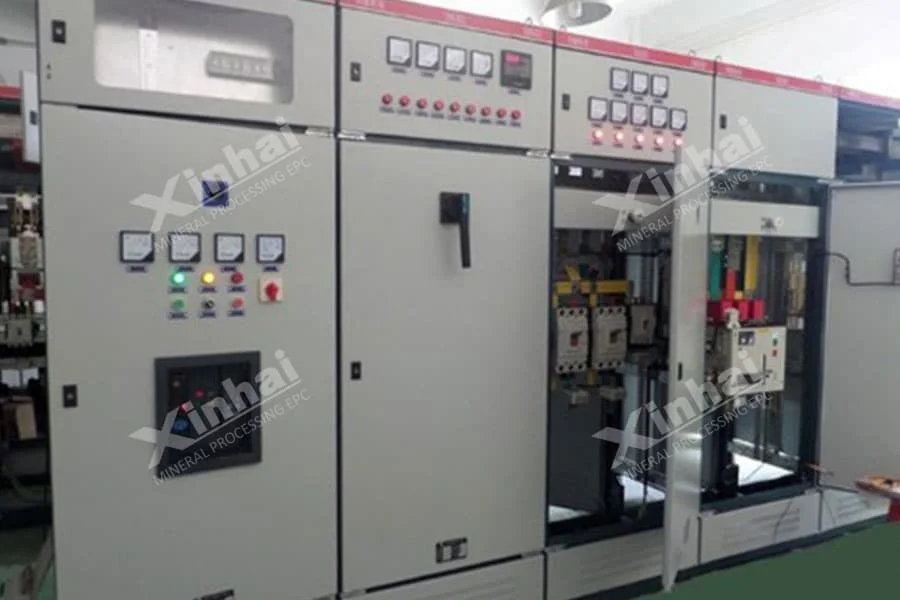

Mine Automation and Control Systems10 equipment types

How the machines connect

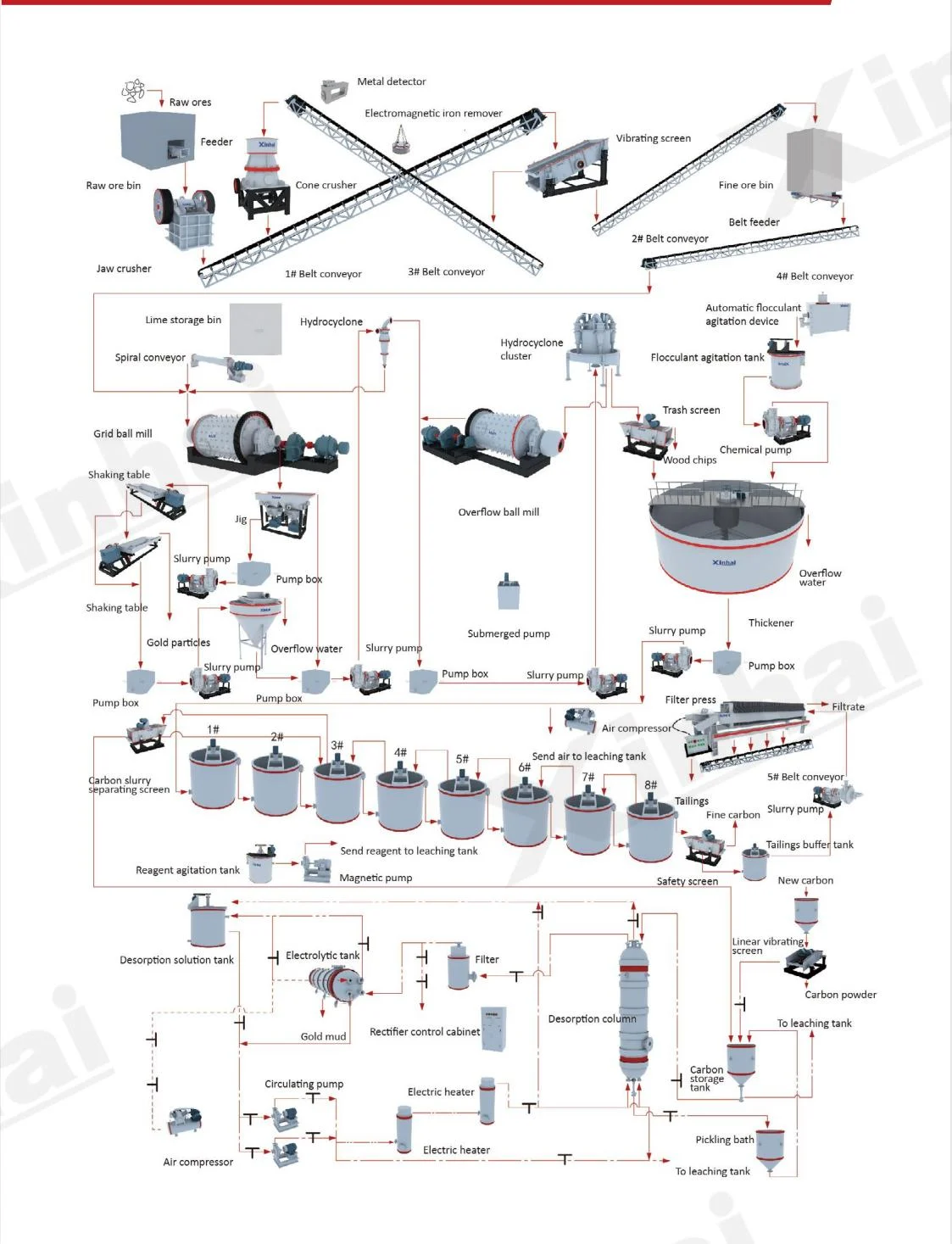

A gold CIL plant flowsheet from the Xinhai equipment application manual, showing where each machine class sits between run-of-mine ore and dore. Your circuit differs with the ore, but the sequence of duties does not.

Gold CIL plant flowsheet showing crushing, grinding, classification, gravity separation, thickening, filtration, leaching and desorption equipment in sequence — Gold CIL circuit, equipment application manual

Send the duty, get a sized proposal

Tell us the ore, the throughput and the target product. Our process engineers come back with a flowsheet position, a model shortlist and the testwork we would need to confirm it.

Request a Quote Read the selection guide
